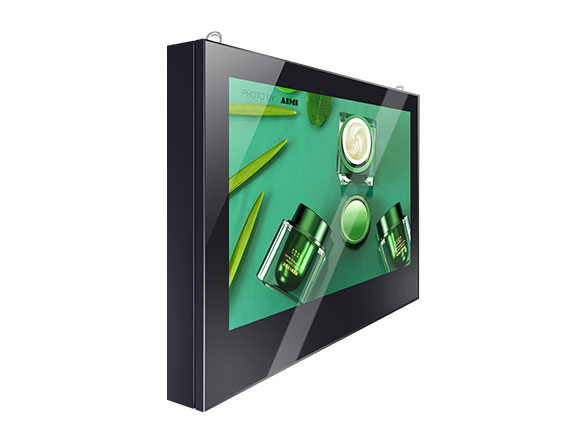

OUTDOOR WALL MOUTNED FULL GLASS-V130L

Description

  • The Outdoor Wall Mounted LCD display, with ultra thin thinkness to 13cm and more lighter weight compared with the former style. The hanging loop design, more convenient to help to install. With the great safety performance because of the Anti-theft design. The touch function is optional according to customers’ real need. Great choice for the outdoor application in publice places.
  • The Outdoor Wall Moutned Full Glass LCD Display, offering 2000-3000nits of light. The ultra thin body makes it easily transport, move and install. Easily gransform it into a interactive touch screen by adding the Outdoor Touch. Remote and Local monitoring be supported via IP addressable user interface.

Features

  • IP55/IP65
  • Automatic brightness control
  • Automatic temperature control
  • Support front maintenance
  • Ultra thin thickness up to 13cm
  • Support landscape and portrait screen mode

Reference Dimension

  • 43:1140*800*130mm(L*W*D)
  • 55″:1450*1140*130mm(L*W*D)
S02 icon03

防盗锁

S02 icon06

防水防尘

S02 icon07

强光下可阅读

S02 icon08

全天无休

S02 icon10

Miracast

S02 icon12

遥控控制

S02 icon15

良好的散热性

规格

OUTDOOR WALL MOUNTED DISPLAY
Panel
Panel size32″/43″/49″/55″/65″/75″/86″/98″
Resolution1080*1920/2160*3840
Aspect Ratio16:09
Brightness(nits)2000-3000nits
Contrast Ratio1400:1
Gray to Gray Response Time(ms)8
Viewing Angel178°/178°
Backlight configurationWLED
Operating Life (hours)50000-60000h
Media Connectivity
Operating SystemInterfaceStorage
Driver boardHDMI, VGA, DVINone
StandaloneHDMI, USB16G
AndroidHDMI, USB2G+16G/4G+16G
WindowsHDMI, VGA, USB4G+120G SSD
Touch
Touch TypeCapacitive Touch
Number of Touch points10/40
InterfaceUSB
Power
Input VoltageAC110V/220V, 50/60HZ
Surge ProtectionYes
Leakage Protection30mA/0.1S
Enviroment
Operating  EnviromentOutdoor
Operating  Temperature-20°C~+40°C with fans , -30°C~+50° C with air conditioner
Storage  Temperature-20°C~+60°C
Humidity10%-80% RH Non-condensing
Enclosure
Dust proof& Water proofIP55/IP65
Glass TypeLaminated tempered and anti-reflective glass
Optional item
Touch ScreenYes
wifi access pointYes
