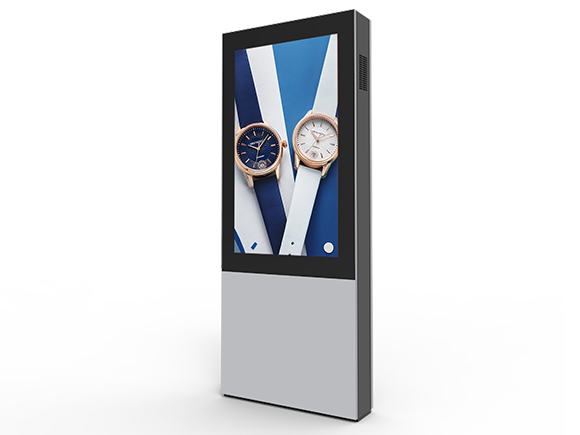

OUTDOOR FLOOR STAND -F130P

Description

  • Simple design, with great waterproof and dustproof performance. Totally different design craftwork from the indoor LCD display. Air cooling or conditioner option depends on customer’s real need.
  • We are introducing an Outdoor Floor Stand Kiosk, built as an IP65/IP55 fully enclosed display module, and completely proof to all the elements such as dust, rain, moisture and so on.
  • Air conditioner and Air cooler for option.

Features

  • IP55/IP65
  • Automatic Temperature Control
  • Automatic brightness control
  • Security lock
  • Additional monitoring devices are available
  • Customized logo options

Reference Dimension

  • 43″: 1770*710*130mm(H*W*D) Base: 710*600mm(W*D)
  • 55″: 1970*860*130mm(H*W*D) Base: 980*600mm(W*D)
  • 65″: 2150*980*130mm(H*W*D) Base: 860*600mm(W*D)
S02 icon03

防盗锁

S02 icon06

防水防尘

S02 icon07

强光下可阅读

S02 icon08

全天无休

S02 icon10

Miracast

S02 icon12

遥控控制

S02 icon15

良好的散热性

规格

OUTDOOR FLOOR STAND KIOSK
Panel
Panel size43″/49″/55″/65″/75″/86″/98″
Resolution1080*1920/2160*3840
Aspect Ratio16:09
Brightness(nits)2000-3000nits
Contrast Ratio1400:1
Gray to Gray Response Time(ms)8
Viewing Angle178°/178°
Backlight configurationWLED
Operating Life (hours)50000-60000h
Media Connectivity
Operating SystemInterfaceStorage
Driver boardHDMI, VGA, DVINone
StandaloneHDMI, USB16G
AndroidHDMI, USB2G+16G/4G+16G
WindowsHDMI, VGA, USB4G+120G SSD
Touch
Touch TypeCapacitive Touch
Number of Touch points10/40
InterfaceUSB
Power
Input VoltageAC110V/220V, 50/60HZ
Surge ProtectionYes
Leakage Protection30mA/0.1S
Environment
Operating  EnvironmentOutdoor
Operating  Temperature-20°C~+40°C with fans , -30°C~+50° C with air conditioner
Storage  Temperature-20°C~+60°C
Humidity10%-80% RH Non-condensing
Enclosure
Dust proof & Water proofIP55/IP65
Glass TypeLaminated tempered and anti-reflective glass
Optional item
Touch ScreenYes
wifi access pointYes
WheelsYes
CameraYes
Card ReaderYes
ScannerYes

欢迎订购您的数字标牌方案,随时播放广告和发布信息,增进与观众的交流互动。
